Characteristics

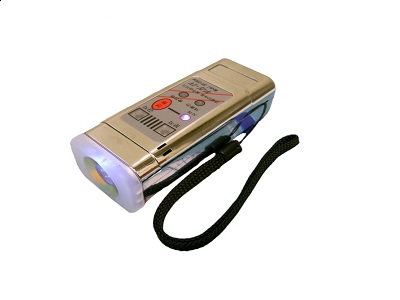

- This device has no physical contact with the body, and can detect alcohol quickly and simply by gently exhaling breath to the detector.
- The presence of more than 0.020% BAC can be detected and the output is provided in BAC units and the test results are indicated by LEDs and beeps.
specification
- Sensor type: Electrical Fuel Cell and Semiconductor
- Battery: Chargeable AA (wetted secondary battery)
- Power supply auto check system
- Battery usage time: 10 to 30 hours in a row after full charge
- Charge time: Approximately 2 hours under Low Battery.
- The front inlet (bullet) is equipped with a dimlight, which makes it easier to distinguish the inlet.
- Inlet (bullet) can be replaced.
- Detection rate: 99% or more detected at 5-15cm distance from the mouth
- Sense display (display): Automatically display with beeper and high luminance LEDs
- Operating temperature range: -10°C to +45°C
- Built-in self-temperature calibration
- Time to prepare measurement: Within 3 seconds of power-on
- Time of measurement (time of sampling and analysis): Collect and analyze all times within one second.
- Time to clear residual alcohol
Within 1 second of Pass mode (less than 0.020%BAC);
Within 10 seconds of failure mode (0.020%BAC or higher)
- All circles: 110/220V combined rechargeable power supply
- Crab without battery: 88g or less
- External dimensions: 40(W) x 100(L) x 28(D)mm
