Characteristics

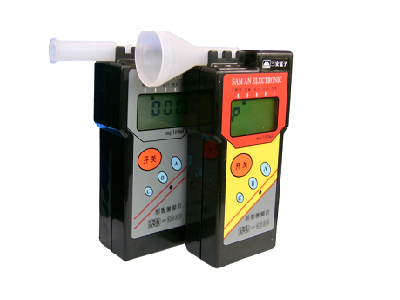

- This breathing alcohol analyzer can automatically screen and test simultaneously by using different modes in one device.

- The test process can be automatically operated and carried on by the microprocessor.

- LED light and LCD display indicate to the operator that each inspection step is not carried out properly, and if the inspection step is not carried out properly, the next step should not be moved on.(Protection of measurement errors by internal safety devices)

- Test results are automatically stored and can be retrieved and verified before the next examination is performed.(The contents stored in memory will not be deleted after that date.)

- 200 test contents can be stored along with the date and time and can be printed to the printer.

- The stored data will be printed on the date and number, or both.

- The facility will be in triple mode. - Preliminary, analysis and preliminary/analysis modes, and all records and data are controlled by software and can be printed in Chinese.

specification



- Accuracy: ± at 100% BAC level.003%BAC error

- Triple mode available

(1) Preliminary mode - Samples shall be taken with a sampling computer and the results can be automatically displayed even if the equipment is not touched within a few seconds.

(2) Analytical mode _ This analysis uses a mouthpiece. The alcohol concentration, test date, and time in the blood or breathing are displayed, and the contents are automatically stored.

(3) Preliminary/Analysis Simultaneous Mode - This mode shall be activated automatically.

- Display screen: 3Digital LED or LCD display is displayed (.000)

(1) "YES" and "NO" in the preliminary mode

(2) The analysis (preparation/analysis) mode shows the alcohol concentration digitally.

- Storage capacity: 200 times

- Output method: The stored record can be printed in any way the user wants, such as the last record output, 50 outputs, the full output and the output record, and the automatic output.

- Temperature of use: -10°C to 45°C
